Sunflower Seeds Peeling Machinery
The plant is appropriative machine designed to hull, remove shells, separate and re-separate for many kinds of oil seeds.
The distinguished characteristic of the equipment is that there is no need to grade the raw materials to more grades, only the AA grade need to be graded to 2 grades and processed separately. Furthermore, there is no need to separate the kernels from seeds by sieves any more, but by the positive-pressure separator. Therefore, the process has been simplified and the automatization degree and efficiency have been improved greatly.

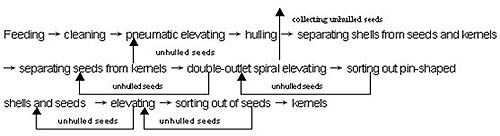

Peeling Machine The flow chart
The equipment consists of 1. Feed-in hopper, 2.vibrating scatter, 3.combined spiral elevator, main part of machinery (4.huller, 5.shells collector, 6.positive-pressure separator which separates the seeds from the kernels, 7.cyclone, and 8.spiral discharger), 9.double-outlet spiral elevator, 10.positive- pressure separator and electric control cabinet.
| Technical Parameters Power: 13.97Kw(380V)  Processing capacity: 0.8 -1 t/h (kernel) Rate of whole kernels: 90% min. (Broken kernel is that less than 1/2 of whole kernel) Rate of seeds in the kernels: 2% max. Rate of seeds and kernels in the shells: 0.3% max. Occupied area: 18m×2.8m Height: 3.2m Weight: 7t Operator: 2 person |
