Wood Pellet Mill
We provided full services from process design, auto-control, layout, manufacture, installation and after-sales guarantee on biomass pelletizing plant. We also provide auxiliary equipments and spare parts for pellet mill.
Pelletizing is the process of making waste materials into solid fuel. The objects are used for burning purposes. Wood Pellet is one of the most commonly used pelletizing materials.
Video of wood pellet mill Line
 |
Detailed Product Description:
1. Raw material:
Pellet fuel is mainly made of sawdust, shavings and fines leftover after processing trees for lumber and other products. The raw material also can be corn and other biomass material.

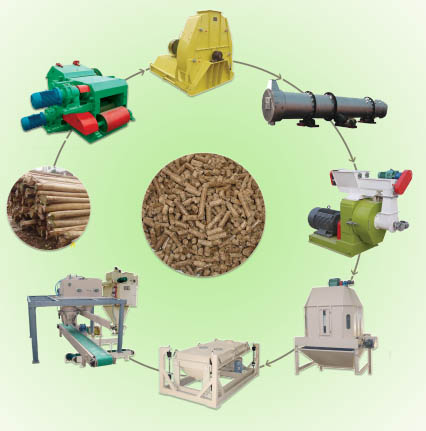

2. Introduction of Process:
At a pellet mill, the material is dried, compressed and formed into small eraser-sized bits. They are clean, plesant to smell and smooth to touch.
Directly before pellet press, a product with a granular size of approx. 4 mm and a residual moisture content of approx. 15 % is required.
The technology can use PLC automatic control system. In the process of crushing and pelletizing, speed control system can be used for feeding material, which adjust the quantity of flow speed of material according to load of main motor. The moisture test points are designed for testing moisture of raw material and material after drying. The material with high or low moisture are separated and feed in back after processing.
3. Tech. Data
Capacity: 1 t/h ~ 6 t/h (based on a mixture of 50% pine and 50% spruce wood)
Raw Materials: Wood sawdust, logs from soft wood
Product Diameter: 6mm or 8mm (optional)
Product Density: 1.1~1.3 kg/m3
Final Moisture: <8%
Note: The above data concerning capacity, consumption may vary depending on the origin, nature of the raw material.
Current Data
Service Voltage: 380V, 50Hz
Control Voltage In Switch Cabinet: 220V, AC
Signal Voltage For Valves, Initiators 24V, DC
Painting Optional by users
4. Highlight of our equipments
> Reliable continuous operation
> Low energy consumption
> Low maintenance cost
