Food Processing
Lychee Peeling Machine
Litchi and Longan Peeling Machine can peel off rind of litchi(longan) which without twig. It widely applies to produce lychee juice, lychee wine, preserved fruits, dry pulp, canned food of litchi(longan).The machine is compact and efficient, less consumption of energy, the peeled lychee is clean and loss of pulp is very small.
Department of Agriculture of Guangdong Province and Department of Science and Technology of Guangdong Province (Guangdong is the largest origin of Chinese lychee) identify and prove the technical performance of Litchi and Longan Peeling Machine is lead in China and in the world. Additionally, we have hold two patents on the machine.
 |
|
||||||||||
XLL-G3000 Lychee Peeling Machine
|
XLL-G3000 Lychee Peeling Machine
|
||||||||||
|
|
||||||||||
Lychee Peeling Machine with Conveyor
|
Rubber Wheel of Lychee Peeling Machine
|
||||||||||
|
|||||||||||
Lychee Peeling Machine Work Theory:
After getting rid of the twigs and impurities from lychee(or longan) ,cleaning rinds with water and disinfection, and simple classification according to size, feed lychee to oriented strip and rotary rubber wheel which is driven by three power rollers. Along with rotation of rotary rubber wheel, feeding wheel pushes lychee to the surface of oriented strip to cut by knife fixed on knife shelf one by one. Lychee pump with pit would be separated from rind by separating wheel, and falls into vibratory output launder. At last, output wheel for rind takes the rind out of machine. |
 |
Peeled Lychee Pulp (with seeds) Coming out From Lychee Peeling Machine
|
|
Lychee and longan processing plant
Lychee and longan processing plant is used to peel off the shell, remove the seeds from the fruits to produce clean Lychee and longan juice, it can be widely used in the downstream processing of lychee and longan juice and fruit wines. The quality of the finished products is stable and can be up to the Chinese hygienic standard for foods.
Flow chart:
selecting-washing with brush-water bubble washing-sieving - middle storage silo-peeling-selecting-seedering and jam making

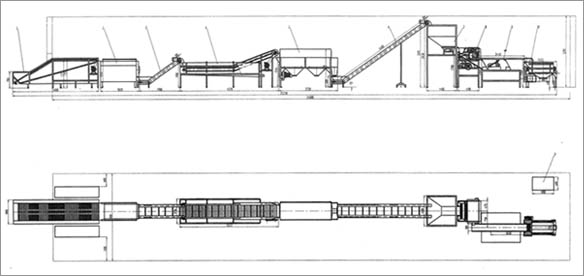

1). lychee peeling and processing plant of 2-3T/H
Floor space: L30m * W2m * H2.5m (set up in straight line)
Labor required: About 10 workers
PS: Floor space adjustable according to customer’s workshop space.
Main machine display
 |
 |
Roller Style Fruit Selector
|
Lychee Fruit Grading Machine
|
 |
 |
Brush Washer
|
Water Bubble Washer |
