Metal Roll Forming Machine for Wall,Roof and Tile

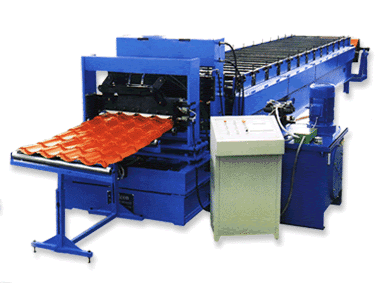

Model TF39.6-200-800 colored steel tile roll forming machine consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table

Metal Roll Forming Machine

Roll Forming Machine Technical Parameters:
Material Spec: Colored and galvanized steel sheet at yield stress 33KSI;
Thickness of Coil Sheet: 0.5 --0.6 mm
Coil Width: 1000mm
Working Speed: 2.0 ~ 3.0 m/min. (step distance at 380mm,)
Power Requirement Main motor power: 7.5kw
Hydraulic Station Power: 5.5Kw
Passive Uncoiler Max. Capacity: 5000kgs
Quantity of Stands: 15groups
Controlling System: PLC
Type of Cutting: Roll-formed and length-set cutting
Machine Dimension: About 18500×1500×1400mm
Total Weight: About 9500kg
Voltage: 380V 3 phase 60Hz or at buyer’s requirement
