Pellet Mill Dies

There are actually two designs of pellet mill dies – flat die and ring die. Die hole sizes usually range from approximately 2mm,2.5mm,3mm,6mm,8mm,10 mm,etc. The thickness of the die plate helps determine the compactness and stability of the pellet. Pellet mill dies vary in thickness up to approximately 100 mm thick. Pellet mill dies are usually manufactured from metal alloys, stainless steel or high chrome. Pressures in the die can reach up to 172,000 KPa (25,000 psi).

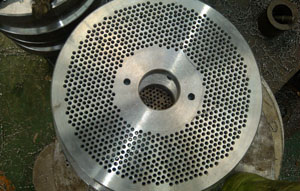

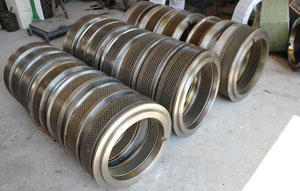

Flat Die	Ring Die
